Shark Freestyle Vacuum Brush Not Spinning

When your Shark Freestyle vacuum brush stops spinning, the culprit is usually a simple clog, a worn belt, or a tripped reset. You can diagnose and fix most issues yourself in under 30 minutes with basic tools. Start by unplugging the vacuum, checking for hair and debris wraps around the brush roll, and inspecting the drive belt. This guide walks you through every step to get your Shark Freestyle’s roller brush spinning again.

You’re halfway through vacuuming the living room, and you notice it. That familiar, satisfying whirring sound from your Shark Freestyle is missing. You look down, and the roller brush—that vital spinning bar with bristles—is just sitting there, stationary. Your heart sinks a little. A vacuum with a non-spinning brush is basically a heavy, awkward fan that just pushes dirt around instead of lifting it. But before you panic and start shopping for a new vacuum, take a deep breath. The problem of a Shark Freestyle vacuum brush not spinning is incredibly common, and the good news is that it’s almost always something you can fix yourself, quickly and cheaply. This guide will be your step-by-step companion, turning you from a frustrated homeowner into a confident vacuum mechanic. We’ll peel back the layers of this issue, from the simplest hair wrap to the more technical belt replacement, so you can get your Shark Freestyle back to its powerful, debris-engulfing self.

Key Takeaways

• Unplug First: Always disconnect the Shark Freestyle from power before inspecting or cleaning the brush roll to prevent injury or damage.
• Check for Clogs: The #1 cause of a non-spinning brush is debris, hair, and carpet fibers tightly wrapped around the roller brush bearings or ends.
• Inspect the Drive Belt: A broken, stretched, or dislodged rubber belt connecting the motor to the brush roll is a very common failure point.
• Reset the Motor: Many Shark models have a thermal reset button on the motor housing; pressing it can revive a tripped motor after overheating.
• Clean the Brush Housing: Even if the brush spins freely, debris inside the housing can create drag and stop it under load.
• Motor Failure is Rare: A faulty motor is the least likely cause. Systematically rule out clogs, belt issues, and reset needs first.
• Preventative Maintenance: Regularly cleaning the brush roll and checking the belt every 2-3 months prevents 90% of “brush not spinning” problems.

Understanding Your Shark Freestyle’s Brush Roll System

Before we start taking things apart, it helps to understand the simple, elegant machine at the heart of your Shark Freestyle. The spinning brush roll, often called the “roller brush,” is powered by a small but mighty electric motor located in the main body of the vacuum. That motor’s spin is transferred to the brush roll via a rubber drive belt, similar to the serpentine belt in a car. The brush roll itself sits in a housing at the vacuum’s head, with bearings at each end that allow it to spin freely.

The Critical Components

Think of it as a team. The motor is the power source, the drive belt is the transmission, and the brush roll is the workhorse. The brush roll bearings are the pivot points. If any single part of this system fails or gets obstructed, the whole team stops working. Your job is to find out which player is down. When your Shark Freestyle vacuum brush isn’t spinning, the failure is almost always in the transmission (the belt) or the workhorse being tangled (the brush roll), not the power source (the motor).

Step 1: The Immediate Triage – Safety and Basic Checks

The moment you realize the brush isn’t spinning, your first instincts matter. Never, ever try to inspect or clean the brush roll while the vacuum is plugged in. The moving parts and electrical connections pose a real risk. Always unplug the Shark Freestyle from the wall outlet. This is non-negotiable.

The Quick Flip Test

Once unplugged, gently flip the vacuum over onto its back so you can see the brush roll housing clearly. Using your fingers, try to manually rotate the brush roll. Can you turn it easily in both directions? Or is it stiff, locked, or does it only turn in one direction with a lot of resistance? This simple test tells you volumes. If it won’t turn at all, you have a severe jam or a broken bearing. If it turns freely, the problem is likely a broken belt or a tripped motor. If it turns stiffly, you have a partial jam or gunk buildup in the housing.

Visual Inspection for Obvious Jams

Shine a flashlight into the brush roll housing from the front and back. Look for the classic culprit: a dense, felt-like mat of hair, carpet fibers, and lint wrapped tightly around the brush roll bristles and especially around the axle bearings on each end. This is the most frequent reason for a Shark Freestyle vacuum brush not spinning. This “hair wrap” creates so much drag that the motor can’t overcome it, or it physically locks the brush roll in place.

Step 2: Deep Dive – Removing and Cleaning the Brush Roll

If your quick inspection showed a jam or even if it spun freely but you suspect buildup, it’s time for a deep clean. You’ll need a Phillips head screwdriver and maybe a seam ripper or a dedicated brush cleaning tool.

Accessing the Brush Roll

Lay the Shark Freestyle on its side or back. On most models, the brush roll housing is held on by 4-6 screws on the bottom plate. Remove all these screws and set them aside safely. Gently lift the bottom plate off. You’ll now see the entire brush roll assembly. Note how the drive belt is looped around the motor pulley and the brush roll pulley—this is crucial for re-assembly.

The Hair Removal Ritual

This is the messy but satisfying part. Use your fingers to pull off as much wrapped hair and debris as possible. For compact, tangled mats, use a pair of scissors or a seam ripper to carefully cut through the hair parallel to the brush roll, being extremely cautious not to nick the bristles or the rubber belt. Once the bulk is removed, use a damp cloth to wipe down the entire brush roll, the bearings, and the inside of the housing. Pay special attention to the small areas where the brush roll axles sit; even a little gunk here can cause significant drag. After cleaning, spin the brush roll by hand—it should rotate smoothly and silently for several seconds.

Step 3: The Drive Belt – The Silent Culprit

If the brush roll is clean and spins freely but still won’t engage when you turn the vacuum on, the drive belt is your prime suspect. This rubber band is under constant stress and can stretch, crack, slip off, or even snap.

Locating and Inspecting the Belt

With the bottom plate still off, locate the belt. It’s a long, thin, black rubber loop stretched between a small pulley on the motor (usually at the back of the housing) and a larger pulley on the brush roll. Gently slide the belt off the brush roll pulley. Now, inspect it thoroughly. Look for these signs of failure:

• Cracks, Fraying, or Glazing: The rubber looks dry, cracked, or has a shiny, hardened surface.
• Stretching: The belt is significantly longer than it should be or sags loosely.
• Missing Pieces: Any part of the belt is broken or missing.

Any of these conditions mean the belt must be replaced. Even if it looks okay, if the brush roll isn’t spinning, a slipped or broken belt is the most likely fix.

Replacing the Drive Belt

Replacement belts for Shark Freestyle models are inexpensive and easy to find online using your model number (usually on a sticker on the vacuum’s body). To install the new belt, stretch it over the motor pulley first, then hook it onto the brush roll pulley and rotate the brush roll to fully seat the belt. It should fit snugly without twisting. This is often the definitive fix for a Shark Freestyle vacuum brush not spinning.

Step 4: The Reset Button and Motor Health

If you’ve confirmed the brush roll is clean, spins freely, and has a new, properly tensioned belt, but it still doesn’t spin when powered on, it’s time to consider the motor itself. But first, there’s one simple trick.

Finding the Thermal Reset

Shark vacuums, including the Freestyle line, have a built-in safety feature: a thermal fuse or reset button. If the motor overheats—often because of a clogged filter, a jammed brush roll, or running too long on a thick carpet—it will shut down to prevent damage. The reset button is usually a small, red or black button on the motor housing, often hidden under a protective cap. Consult your user manual for the exact location on your specific model. Press this button firmly. You should hear a click. This resets the motor circuit. Try running the vacuum again (with the brush roll housing off for this test, to rule out other issues). If the motor hums and the brush roll pulley turns, you’ve solved it!

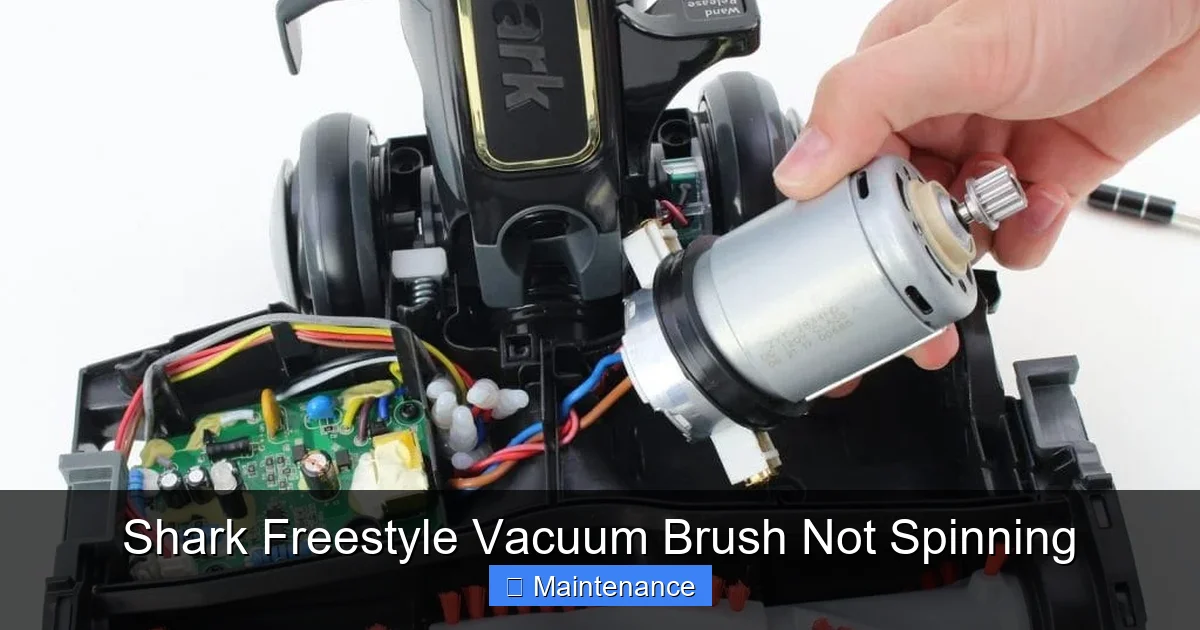

When the Motor Itself is the Problem

If the reset button is already popped out, pressing it does nothing, or the motor makes a humming sound but the pulley doesn’t turn, the motor may be burned out. This is rare without a preceding major jam or long-term neglect. Diagnosing a bad motor requires electrical testing with a multimeter, which is beyond most home users. At this point, you must weigh the cost of a professional motor replacement against the value of your Shark Freestyle. For older models, a new vacuum might be more economical.

Preventative Maintenance: Keeping Your Brush Spinning

An ounce of prevention is worth a pound of cure. Incorporating a quick brush roll check into your routine will save you from this hassle in the future.

Make it a Monthly Habit

Once a month, unplug your Shark Freestyle, flip it over, and manually rotate the brush roll. Listen for any grinding or feel for resistance. Use a scissors or your fingers to remove any hair you see starting to wrap. This 60-second habit prevents the massive, compacted jams that cause the most damage.

Mind Your Carpets and Pets

If you have long-haired pets or thick, shaggy carpets, you are in the high-risk category for brush roll jams. Consider using the vacuum’s “hard floor” setting (which often turns the brush off) on delicate rugs, and be extra vigilant with cleanings. Some users find that a quick spray of a silicone-based lubricant (like WD-40 Specialist Silicone) on the brush roll bearings (with the vacuum off and clean) every 6 months helps hair slide off instead of tangling. Always check your manual first to ensure this won’t damage any components.

Conclusion: Your Shark Freestyle is Likely Fixable

When faced with a Shark Freestyle vacuum brush not spinning, remember this mantra: unplug, inspect, clean, check the belt, reset the motor. You’ve now journeyed through the entire mechanical pathway of your vacuum’s brush system. You know that the vast majority of these issues stem from a preventable hair wrap or an inexpensive $10 drive belt. By approaching the problem systematically, you empower yourself to make a simple repair instead of a costly replacement. That satisfying whirring sound and the sight of carpet fibers lifting is just a few minutes of DIY effort away. Your Shark Freestyle was built for power and durability; with a little maintenance love, it will continue to be the workhorse your home needs for years to come. Now, go grab that screwdriver and bring that brush back to life.

Frequently Asked Questions

Is it safe to use my Shark Freestyle if the brush roll isn’t spinning?

Yes, it’s safe to run the vacuum without the brush roll spinning, but it will be very ineffective on carpets. The suction alone can’t agitate and lift embedded dirt from carpet fibers. You should only use it this way temporarily on hard floors while you plan your repair.

How much does a replacement drive belt for a Shark Freestyle cost?

A genuine or compatible replacement drive belt typically costs between $8 and $15. It’s one of the most affordable and common replacement parts for this model line and is available from Shark directly, Amazon, or appliance parts retailers.

How often should I clean my Shark Freestyle’s brush roll to prevent issues?

For homes with pets or thick carpets, clean the brush roll and check for hair wraps monthly. For average use, a thorough check and clean every 2-3 months is sufficient to prevent the majority of brush roll jams and belt strain.

Can a clogged filter cause the brush roll to stop spinning?

Indirectly, yes. A severely clogged filter reduces overall suction power and can cause the motor to overheat, potentially tripping the thermal reset. However, a clogged filter alone won’t stop a freely spinning brush roll from turning if the belt and motor are functional.

What if my brush roll spins freely when I test it manually, but the vacuum still won’t engage it?

>This points strongly to a broken or slipped drive belt. Re-seat the existing belt or install a new one. If a new belt doesn’t solve it, the motor pulley may be worn and not gripping the belt, or the motor itself may be faulty.

Is a non-spinning brush roll covered under the Shark warranty?

It depends on the cause and warranty terms. Damage from neglect, such as a severely jammed brush roll or a broken belt from normal wear and tear, is typically not covered. Failures due to manufacturing defects within the warranty period may be covered. Always check your specific warranty documentation.
